AHRI 1380

Updating to "-2026" from "-2019"

Don Jackson

Proposed Goals for AHRI 1380-2026

Define a standard that enables HVAC systems to participate in demand flexibility, in order to:

• Provide customers the comfort they desire, at the lowest energy cost
• Coordinate with the electric grid to reduce peak load events, lowering infrastructure costs
• Shift energy usage to minimize both environmental impact (GHG) and cost

Enable demand flexibility control by any or all of:

• Customer
• Utility
• Aggregator (including the HVAC manufacturer acting as aggregator)

AHRI 1380-2019 Protocols

OpenADR 2.0b

• HVAC system connects via Wi-Fi and/or Ethernet
• VEN (client) typically resides in manufacturer's cloud
• Connection between HVAC system and cloud uses proprietary protocol

Are there ANY native-VEN HVAC systems?

CTA-2045-A

• A port enabling an aftermarket UCM to control the HVAC system
• UCM's connection to DRP uses unspecified protocol

Are there ANY HVAC systems that support CTA-2045?

Educated Guesses & Assumptions

Virtually all AHRI 1380-2019 compliant HVAC systems do so via:

• OpenADR 2.0b VEN residing in the manufacturer's cloud
• Wi-Fi interface on HVAC system
• No HVAC systems support OpenADR native VENs
• No HVAC systems support CTA-2045 ports

Industry Trends

• Dynamic pricing is superior to traditional DR events — CPUC & CEC transitioning
• Flexible-demand appliances per household are growing — need coordinated management
• Grid coordination transitioning from device to site
  • Dynamic power import/export limits per site (NEC-705.13 & UL-3141)
  • Site management will occur locally, not in the cloud
• OpenADR 3.1 supports everything 2.0b does, plus:
  • Both cloud-to-cloud AND cloud-to-device communication
  • Simpler & easier to develop and deploy
• Matter adopted for smart-appliance interoperability (800+ companies)
  • Does not provide grid-to-customer coordination alone
  • Combined with OpenADR 3.1: local HEMS controls via Matter

Functional Control and Demand Response

• Device behavior is altered via functional-control commands
• Optimal translation requires local customer context
• The translation location must be customer's choice: device, local HEMS, or ASP
• Translation must not be locked in the manufacturer's cloud

Local HEMS is the best location to translate price & DR events to functional-control commands

Ensured vs. Enabled

Assessing AHRI 1380-2019

Experience with CTA-2045 for water heaters has clearly demonstrated that the cost and installation of a UCM is too large, resulting in very poor connection rates. CTA-2045 is obsolete and should be EOL'd.

Implications from Trends

• Begin transition from OpenADR 2 to OpenADR 3.1
• Define native HVAC system control to enable:
  • Coordinated management of all home appliances
  • Allocation of site capacity limits to specific appliances
• Add Matter support to native HVAC systems for:
  • Functional control by Matter-based HEMS
  • Customer integration into "whole home" management apps
• Drop CTA-2045 support:
  • Few/no HVAC systems support it
  • Has failed for water heater DR with plenty of time to succeed

AHRI 1380-2026 Proposal: Networking

HVAC systems must support (or be capable of supporting):

• Wi-Fi
• Cellular modem
• Ethernet

Implementation:

• HVAC system may directly integrate any or all interfaces

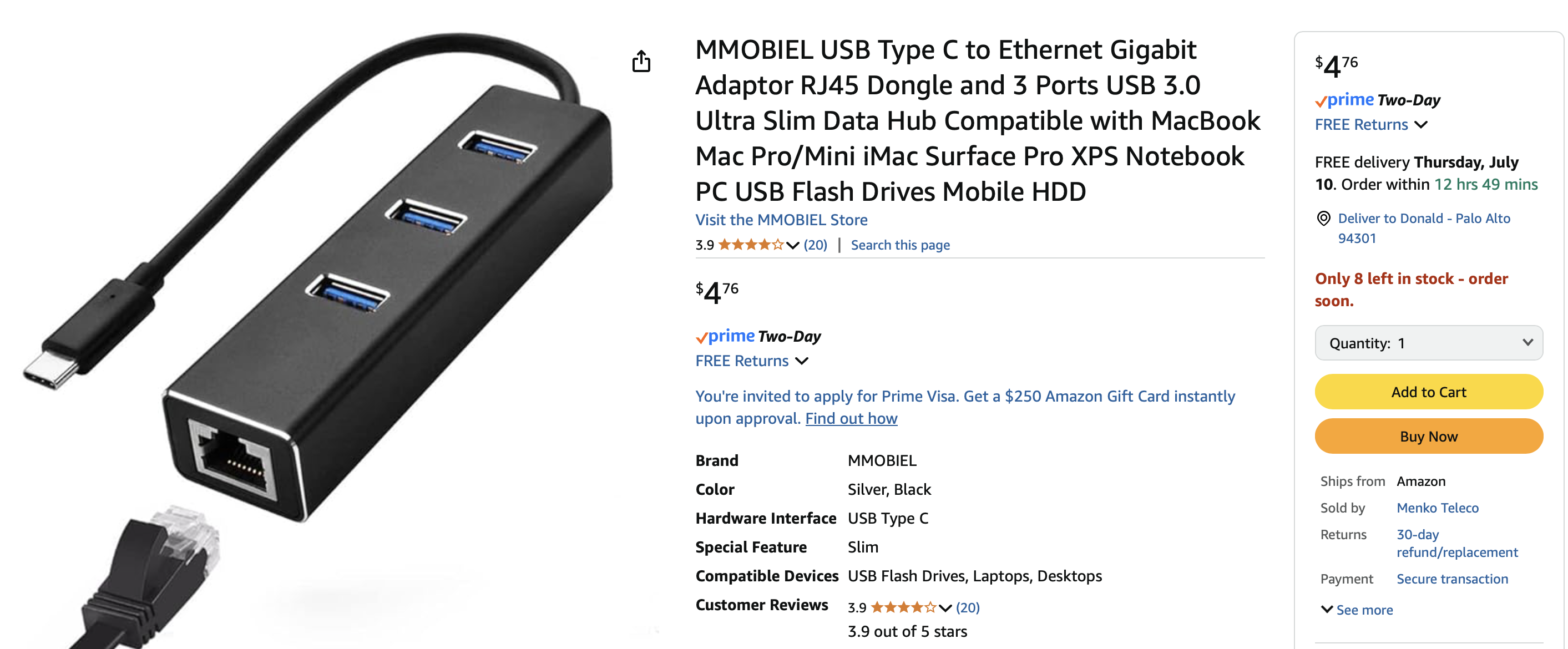

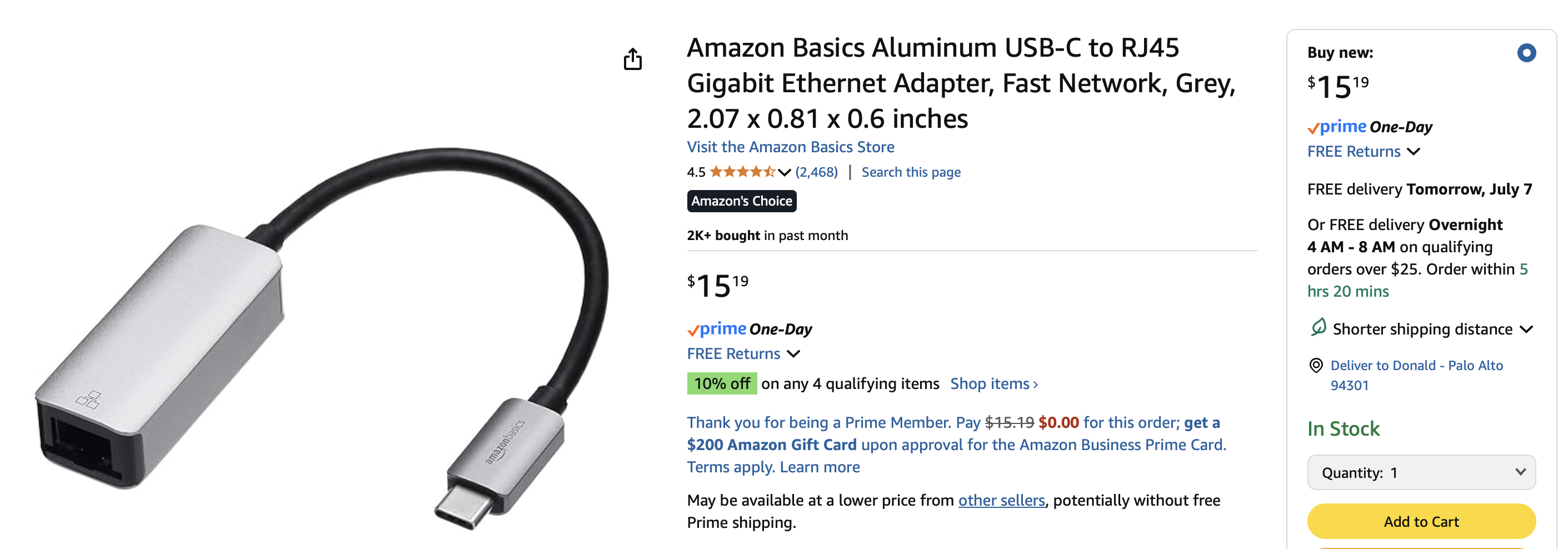

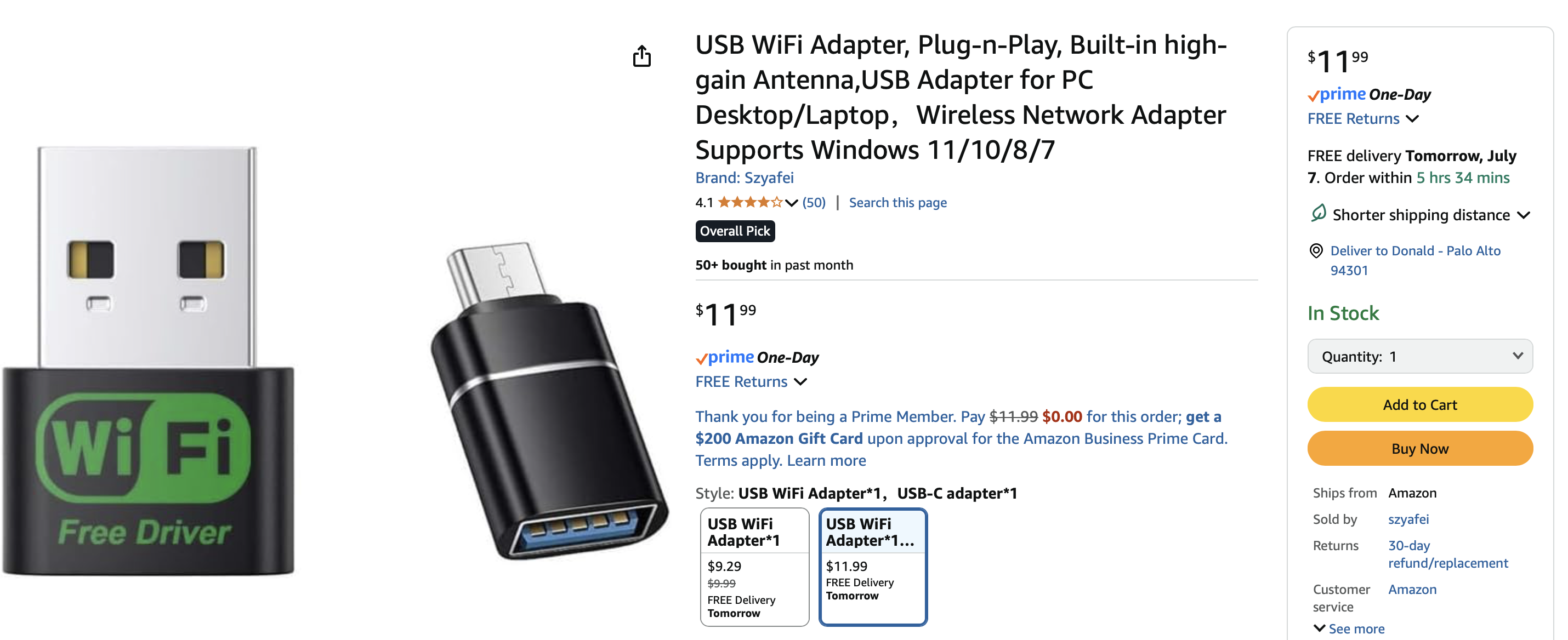

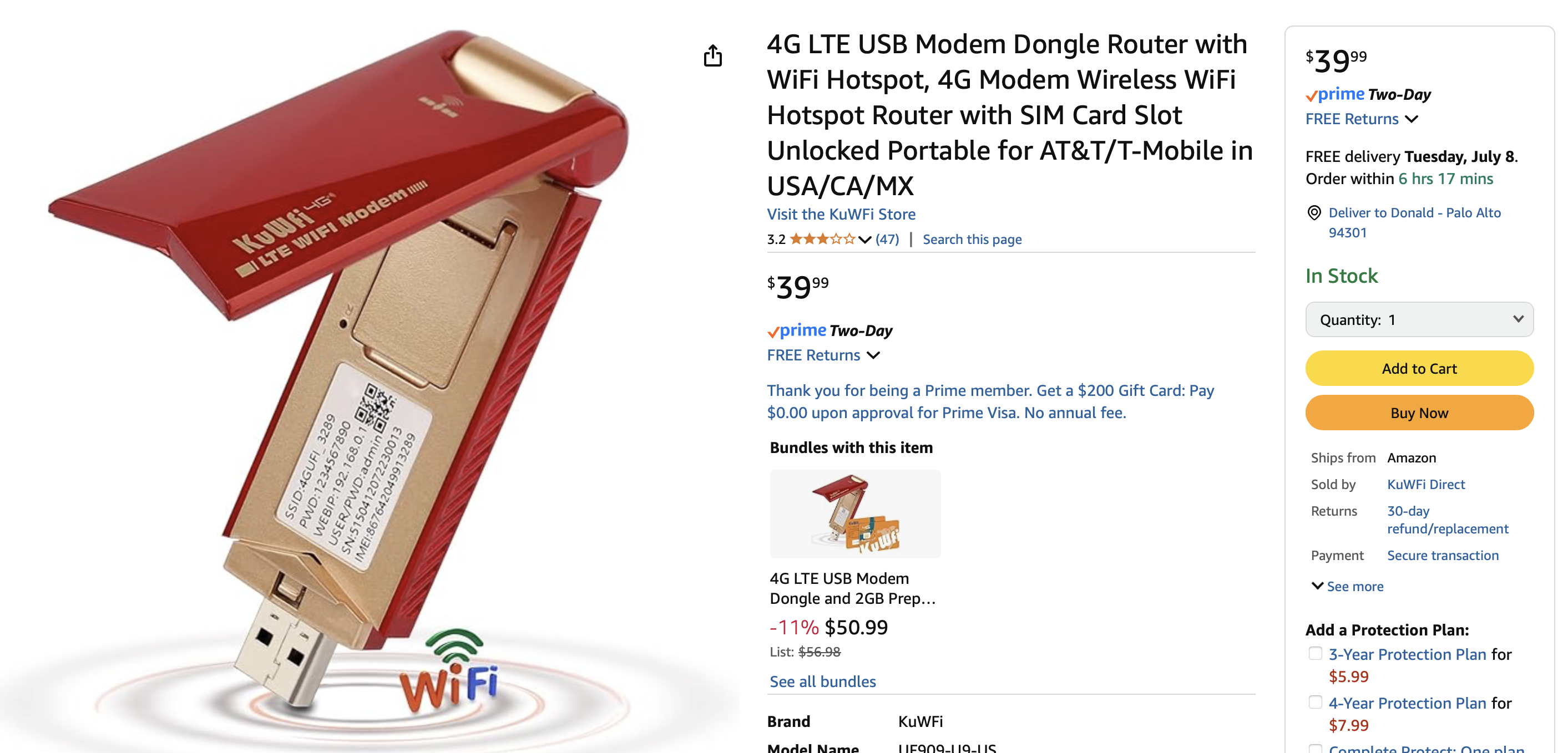

• HVAC system must provide a USB-C port for network interface dongles
• Customer (or DRP) adds non-integrated interfaces as needed

AHRI 1380-2026 Proposal: Protocols

Two distinct compliance types — a system must support one, may support both:

Native

Protocol(s) provided directly & locally by the HVAC system:

• OpenADR 3.1 VEN — Mandatory (MUST), VTN URL customer-configurable
• Matter 1.4+ — Optional (SHOULD): DEM, DEM Mode, Thermostat clusters

Cloud

Protocol(s) provided via the manufacturer's cloud:

• OpenADR — Mandatory (MUST)
  • 3.1 VEN: Preferred (SHOULD)
  • 2.0b VEN: Allowed (MAY) during transition
• Home Connectivity Alliance — Optional (MAY)

Compliance/Certification Options

A compliant HVAC system must specify which option(s) it supports.

Enables existing products to comply while providing a clear transition path.

Where the Puck Is Going: Grid Coordination

• "Macro" coordination will transition from DR events to highly dynamic pricing
• "Micro" coordination will support dynamic capacity management per site
  • "Current price is P $/kWh, your maximum site import is N Amps"
• HEMS will autonomously control loads based on price, capacity limits, customer preference, local generation, and storage

Native control of HVAC power & energy is the only way to support these use cases.
HVAC manufacturers should focus on and prioritize native protocol support.
OpenADR 3.1 supports BOTH cloud-to-cloud AND cloud-to-native use cases.

Where the Puck Is Going: HVAC Systems

CEC and Demand Flexibility

The CEC has begun a series of dockets to define Flexible Demand Appliance Standards (FDAS):

• Docket 24-FDAS-03 for Low-Voltage Thermostats (September 2024)
• Docket 24-FDAS-04 for Electric Vehicle Supply Equipment (October 2024)

It behooves AHRI 1380 to support potential regulatory mandates and future rebate/incentive requirements.

The 1380-2026 proposals provide a smooth transition path from today to tomorrow, enabling HVAC systems to "skate to where the puck is going."

Exit Protocols & MITO

Exit Protocol ("Snapback")

• Simultaneous startup of many HVAC systems after DR event stresses the grid
• Solutions: randomized duration offsets, staggered cancellation events
• Likely a server implementation issue, not a protocol issue

Maximum Indoor Temperature Offset (MITO)

Most useful HVAC controls for DR:

• Mode: Heat pump only, vacation, off
• Setpoint: Raise (cooling) or lower (heating) to attenuate power
• Power adjustment: Variable-speed systems support throttle control
• Zone: Mode and setpoint per zone

Variable power adjustment via Matter DEM and DEM-mode clusters provides the most granular control. Local control is crucial for HEMS.
